i60x INSTALLATION GUIDE




What is inside the i60x Product Box

The following items are included with each i60x product:

  1. i60x Hardware Device

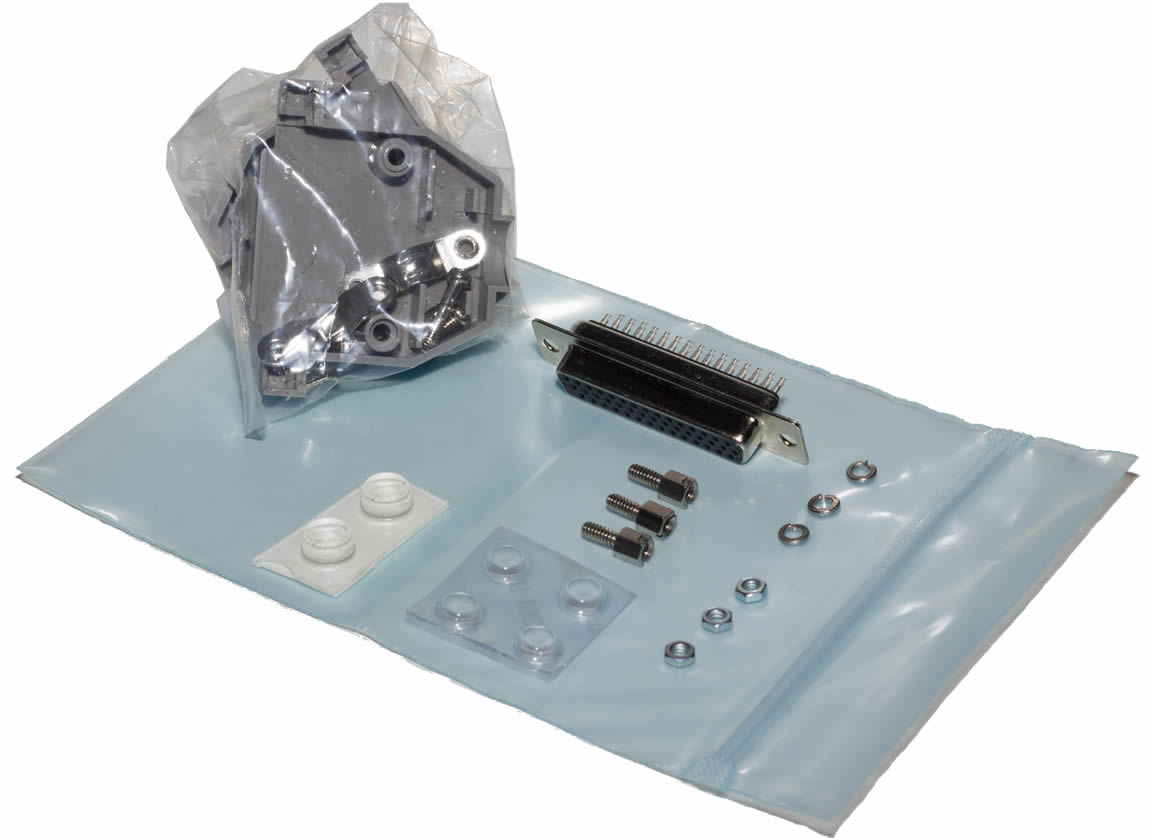

  2. i60x hardware Kit which includes: Hd44 Connector and Cover, three 4-40 jackscrews, three 4-40 lock washers, three small 4-40 nuts (to attach jacknuts to Hd44 female connector), four small rubber feet, and two larger rubber feet.

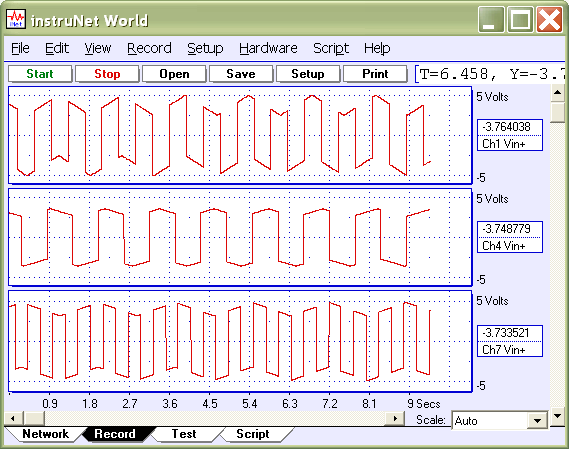

  3. instruNet World software on CD.

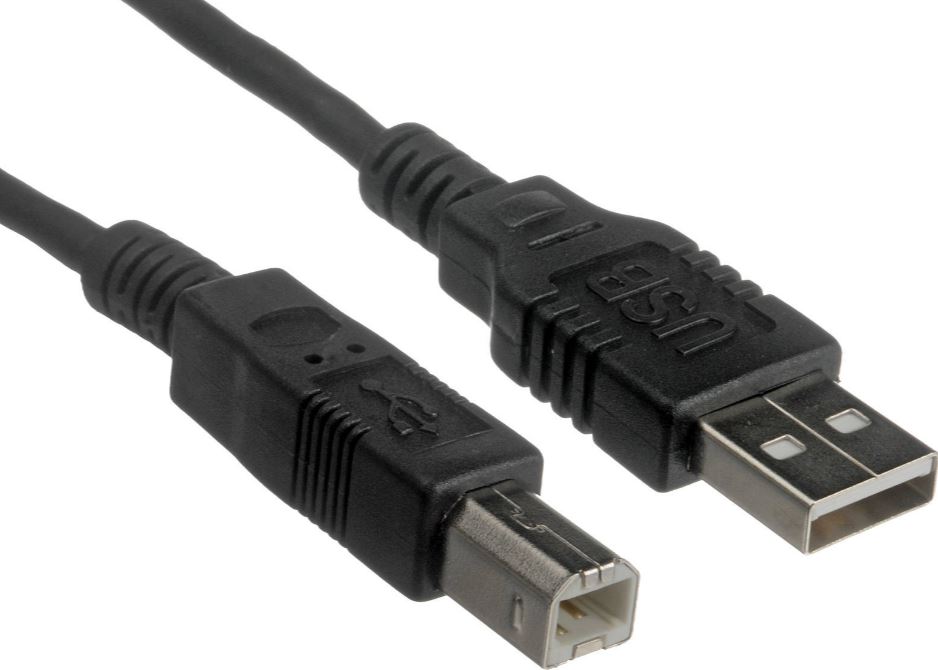

  4. 10ft USB Cable.

Items not included with i60x Product:

  • i60x does not include i51x wiring box.
  • i60x does not include instruNet world PLUS software.
  • i60x does not include Precision Resistors.
  • External power supply is not required since power is derived from i60x USB cable.




How to Attach i60x to i51x Wiring Box

Feet & jacknuts are included with each i60x product inside the i60x Hardware Kit. When wiring sensors, remove power by unplugging the i60x USB cable. To attach i60x to i51x Wiring Box:

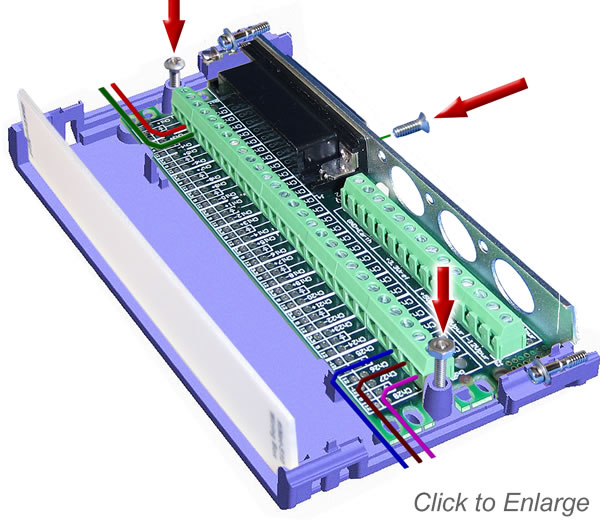

  1. Remove i51x top cover by unscrewing 3 bolts.

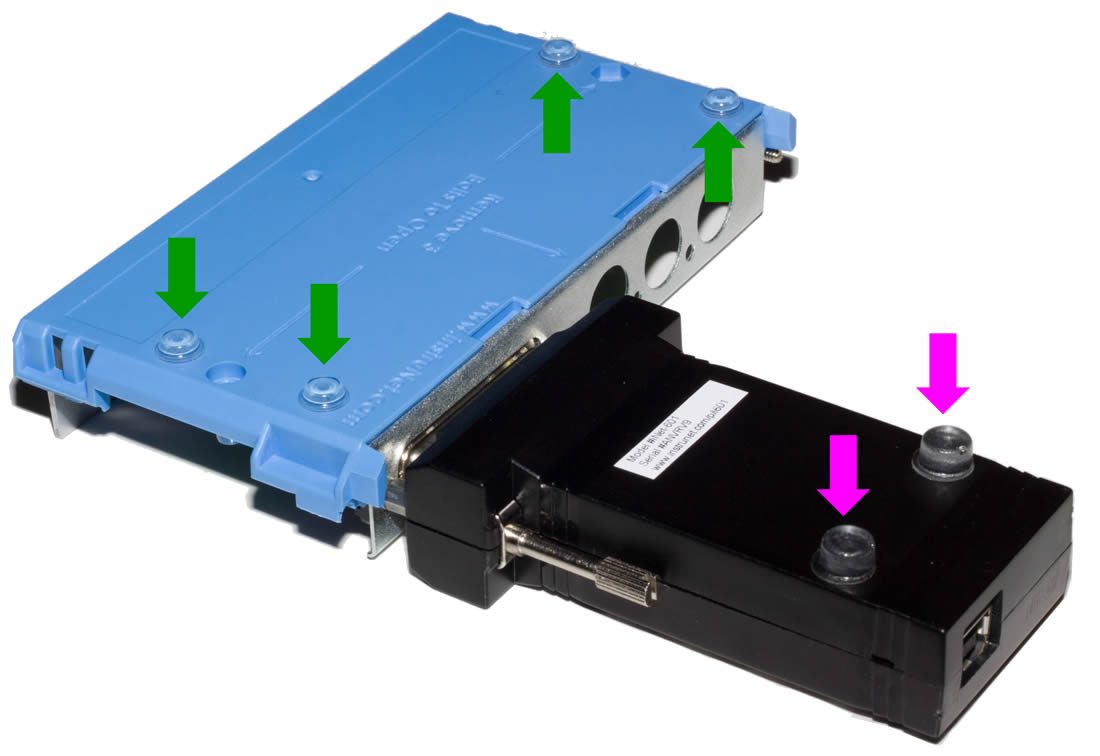

  2. Affix 4 small rubber feet to bottom of i51x and affix 2 larger rubber feet to bottom of i60x.

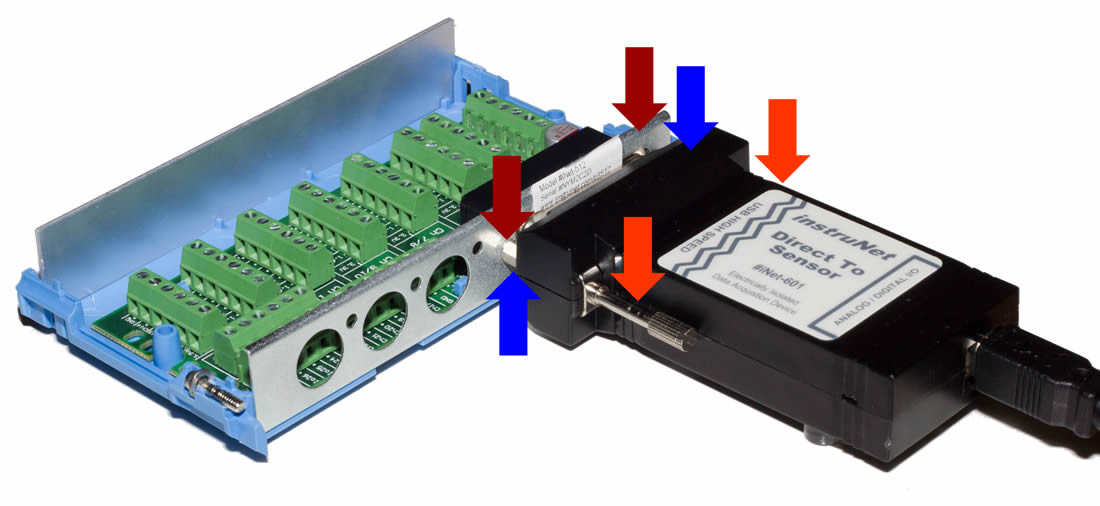

  3. Install 2 jacknuts via lock washers next to i51x Hd44 connector, connect i60x to i51x, and tighten 2 thumbscrews.




How to attach i60x Directly to Sensor Wires

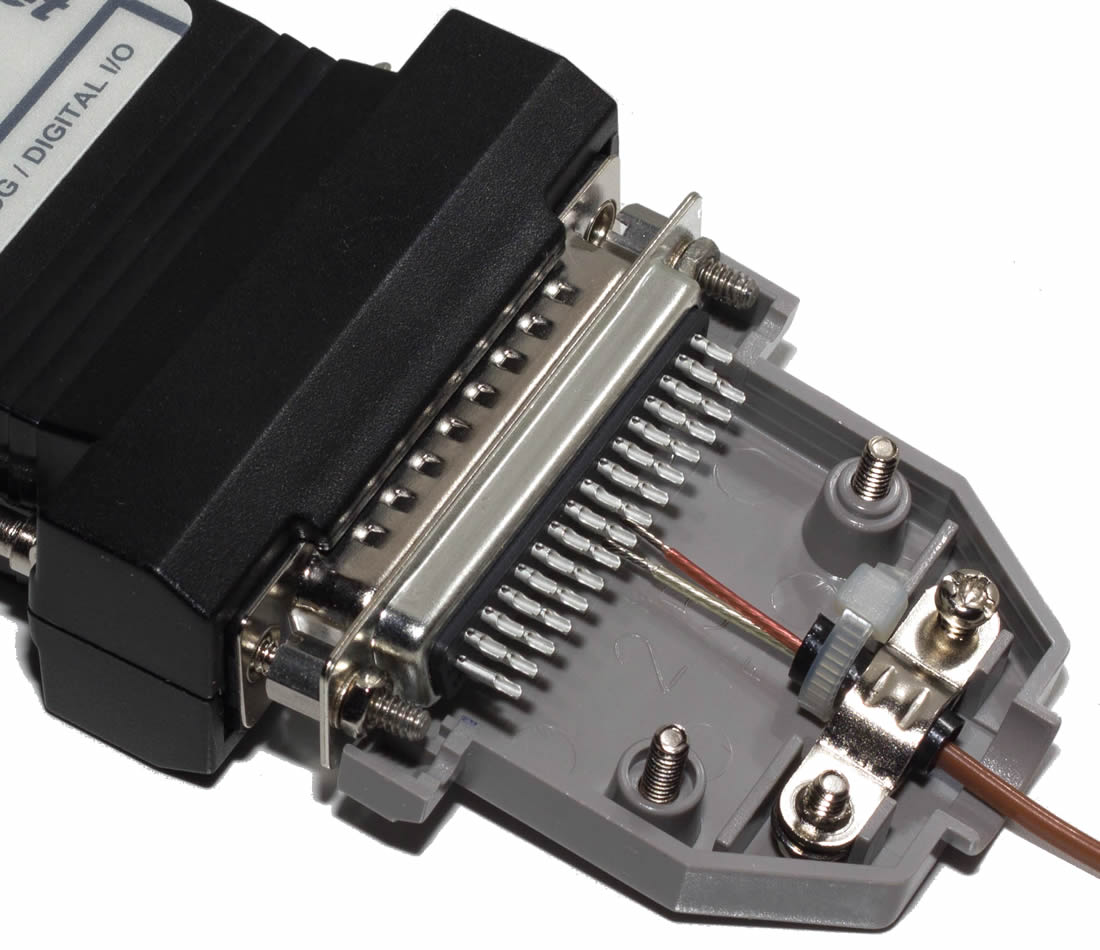

To attach i60x to the Hd44 female connector included in the i60x Hardware Kit (shipped with i60x), connect two jacknuts to the Hd44 via small 4-40 nuts and lock washers, solder wires to Hd44 female connector, and assemble Hd44 hood as shown in below photo. In this photo, we incorporate end user supplied heat shrink tubing and nylon tie-wrap for strain relief, both of which are not included in the i60x Hardware Kit.




How to attach i60x to i511 BNC Wiring Box

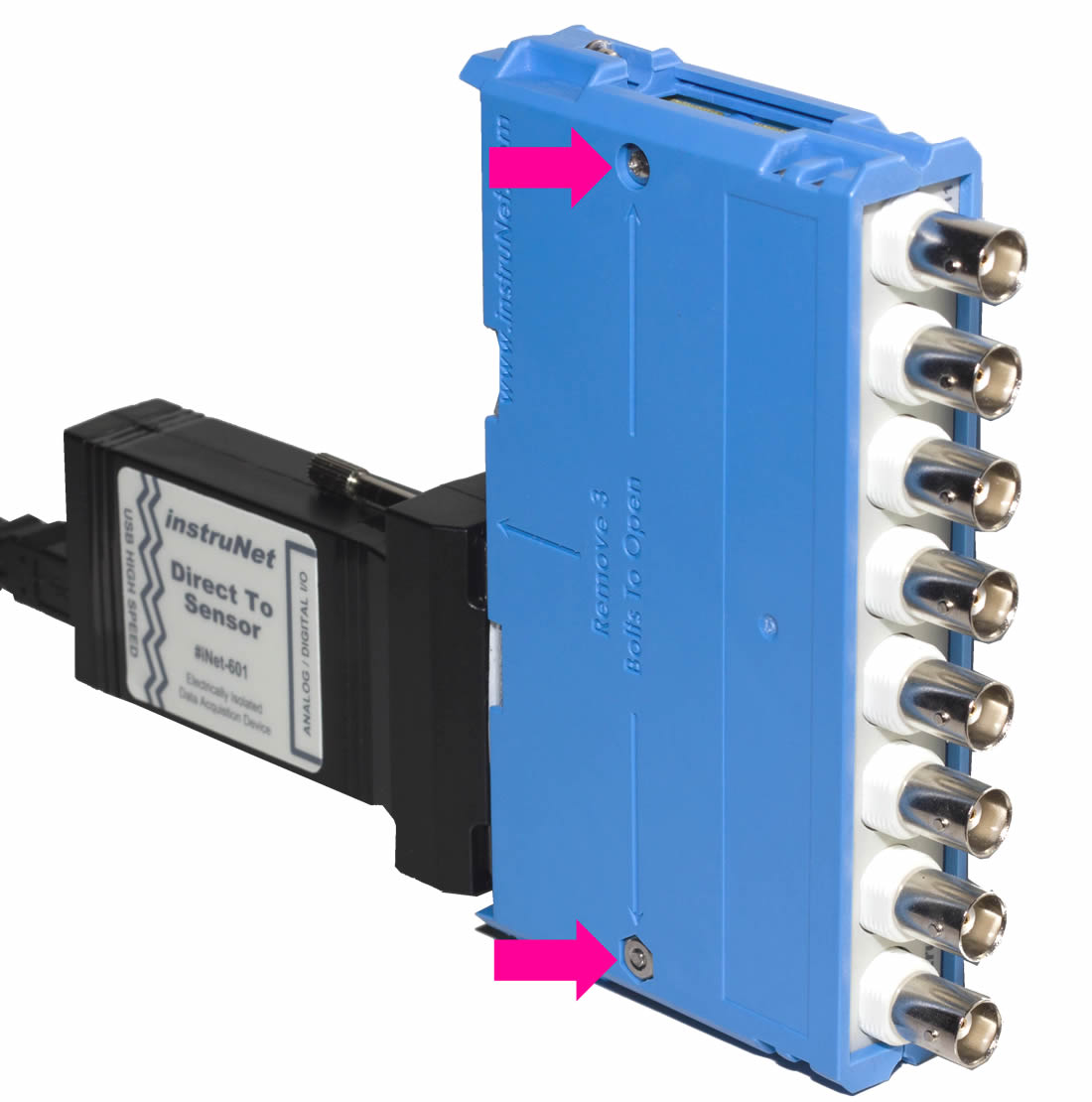

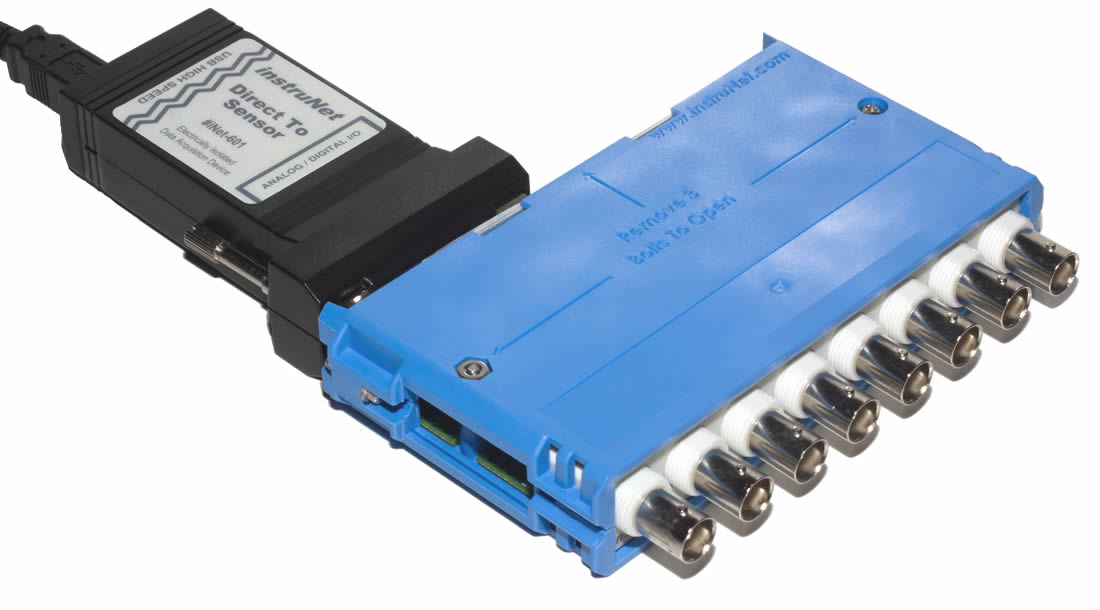

To attach i60x to i511 BNC Wiring box, remove one flat-head philips bolt next to i51x Hd44 connector, install 2 jacknuts via lock washers next to i51x Hd44 connector, connect i60x to i51x, and tighten 2 thumbscrews.




How to attach i60x/i51x to flat surface

To attach i60x/i51x to flat surface, drill 0.140 inch (3.5mm) diameter holes in surface spaced at 4.5 inches (114.3mm), remove two 4-40 x 0.875 inch bolts from i51x, and attach i51x to surface via end user supplied alternative bolts. For a drawing of i51x plastic, click here.
