ATTACHING THE i4xx CARD CAGE TO A WALL PRODUCT LIST > i4xx >
If one has access to both sides of a wall, they can easily bolt the i4xx Card Cage to that wall via
extra bolts included with the #iNet-400 product. These mate with pre-drilled and pre-threaded holes in the i4xx
Card Cage bottom, back and top surfaces.
This assumes you have access to both sides of the wall. If you do not, then consider the
i530 Wall & DIN mounting brackets, which can be used to affix a card cage to a DIN rail or to a wall
in which you only have access to the i4xx side of that wall.

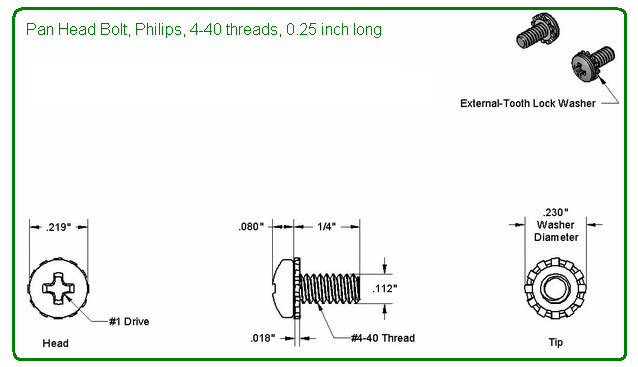

The i4xx Card Cage ships with four extra 4-40 pan head 0.250"

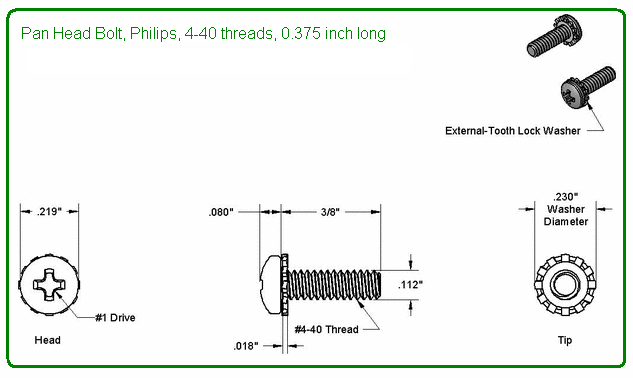

bolts and four extra 4-40 pan head 0.375" bolts
to help with wall mounting.

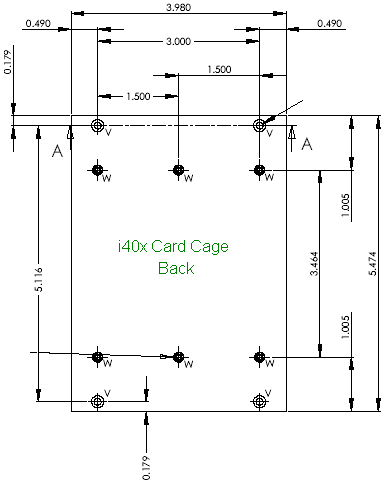

i40x Mechanical Drawing

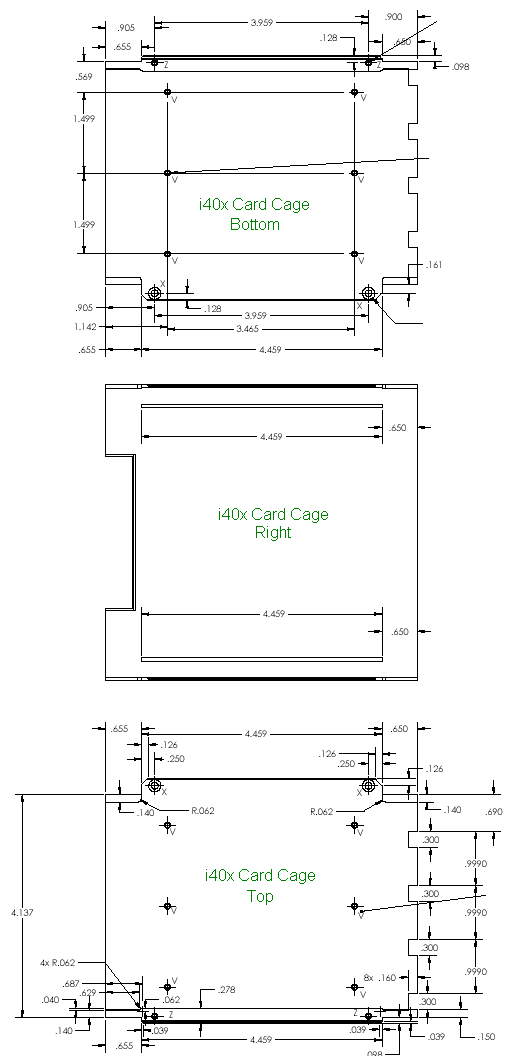

The illustrations below show the locations of pre-threaded
4-40 holes (Labeled "V" and "W")
in the i4xx Card Cage top, bottom, and back surfaces.
