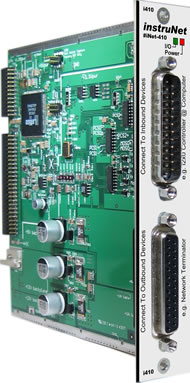

MODEL i410 INSTRUNET INTERFACE CARD PRODUCT LIST > i410 >
The i410 card connects an i4xx Card Cage to a Windows computer via an instruNet
i240 USB, i200 PCI or i230 PCMCIA controller card. The i410 plugs into the left-most slot (slot #1) of an i4xx Card cage.
One and only one i410 is required per i4xx card cage when working with i2x0 controllers.
The i410 provides the following features:
Two Db25 connectors allow
daisy-chaining multiple i4xx Card Cage and i100 devices to one i2x0 controller card.
Front panel red power light shows presence of 5V, 12V, and -12V power.
Front panel green I/O light blinks when computer communicates with card cage.
