  • Free instruNet World strip chart recorder software supports Windows XP, Vista, 7 and 8 (32-bit or 64-bit).
  • Compatible with LabVIEW, DASYLab, C and Visual BASIC Software.
  • Digitize any combination of channels at 166,000 samples per second aggregate.
  • Reduce noise by placing i4xx cards near sensors and up to 100 meters from noisy computer.
  • i51x wiring boxes easily attach to i4xx series cards.



List of Steps To Connect Sensor To Windows Computer

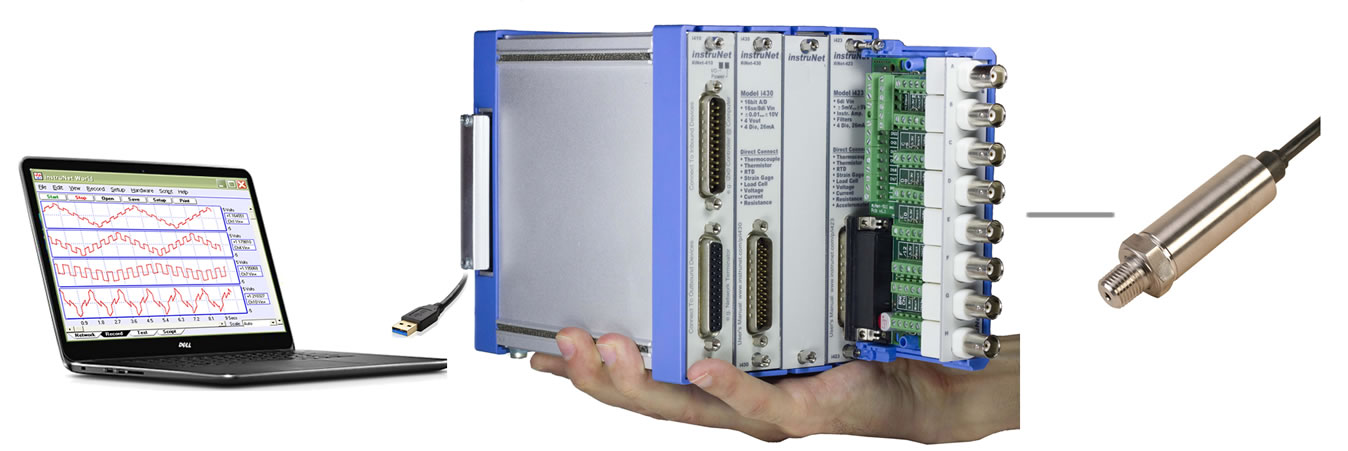

To connect the Model #PX4x9xxxx5V pressure sensor with 5V output to instruNet, please do the following steps:

  1. Install instruNet hardware and software, as described here.
  2. Wire your 0 to 5Volt output sensor to instruNet:

    * instruNet_Vin+ to Sensor_Vout
    * instruNet_Vin- to Sensor_GND
    * add jumper wire from instruNet_Vin- to instruNet_GND
    * instruNet_+12Vpwr to Sensor_PowerInput (requires 10..30V)
  3. Set up your software:

    * run instruNet World software
    * click on your channel in the instruNet NETWORK page
    * select HARDWARE in the Settings menu
    * select VOLTAGE the SENSOR menu
    * select "Vin+ - Vin-" (differential) in the WIRING menu
    * select "0 to 5V" in the RANGE menu (or ±5V)
    * if you are digitizing slowly (e.g. slower than 10 samples-per-second-per-channel), set INTEGRATION to "0.016666" seconds. This will average each point over one 110/220Vac power line cycle and reduce noise.
  4. View measured VOLTAGE in lower right corner of setup dialog, or Network page. Apply stimulous to sensor. Does voltage look correct? If not, debug with handheld volt meter.
  5. Tell software to map volts units to sensor units by setting the following parameters. For more information on Mapping, click here.

    * general, Units Label: text label (e.g. "bar" or "psi")

    * mapping, internal1: 0 (i.e. low calibration point Voltage)
    * mapping, external1: 0 (i.e. low calibration point Pressure)
    * mapping, internal2: 5 (i.e. high calibration point Voltage)
    * mapping, external2: high calibration point pressure, units are the same as that specified in Units Label field
  6. View measured value in the lower right corner of setup dialog, or Network page. Apply stimulous to sensor. Does value look correct? If not, click sensor troubleshooting.

    For more information on setting up sensors, see how to connect or working with voltage sensors.
  7. For more accuracy, consider two-point calibration.
  8. Digitize waveforms, as described here.
  9. Save your settings in a .prf file by pressing the SAVE button in the NETWORK page (not record page). To get these back, click OPEN in the network page.
  10. To further learn how to use instruNet, click software tutorial. To learn about instruNet products, click here.
