MODEL 100, 100B, & 100HC
DATA ACQUISITION HARDWARE
PRODUCT LIST > i100 >

Features

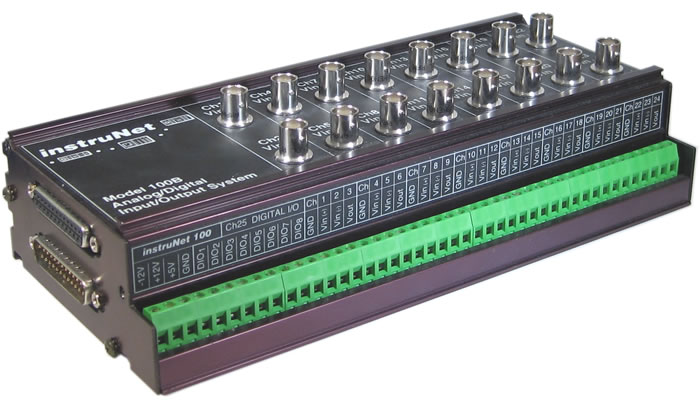

The i100 instruNet Network Device, pictured to the right, provides the following features:

  • 16se/8di 14bit analog inputs with ±5V, ±.6V, ±.08V & ±.01V range
  • 8 Channels ±5V 8bit analog outputs
  • 8 digital I/O bits

Click on image to enlarge

Product Variations
All i100 products includes 44 screw terminals. The i100B version provides 16 additional BNC connectors for analog inputs; and the i100HC version provides no BNC's yet does provide voltage output channels with 15mA of drive capability.

Model Voltage Inputs Voltage Outputs Digital I/O
  # of Channels Input Range Absolute Accuracy # of Channels Write Accuracy Read-back Acc-uracy
i100 16ch w/screw terminal access ±5V
±.6V
±80mV
±8mV
±1500µV
±150µV
±45µV
±30µV
8ch with 4mA/ 1KpF Drive Capability ±40 mV ±3 mV 8 bidir-ectional I/O Bits
100B Same as #iNet-100, yet with 16 additional BNC connectors for 16se voltage inputs.
100HC Same as #iNet-100, yet with voltage outputs that have 15mA/.01uF drive capability.
