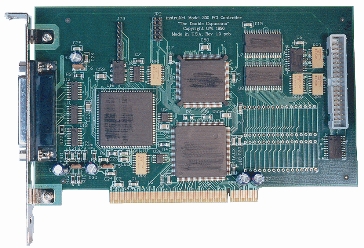

The Model 200 instruNet Controller PCI Card is used to connect a Windows
Desktop computer to an instruNet network,
and to provide several Digital Timer I/O channels at a 34-pin connector, as illustrated in the below figure.
An instruNet network consists of instruNet Devices which are daisy-chained together.
In instruNet lingo, an "instruNet Device"
is either an i100 box box or i4xx Card Cage.

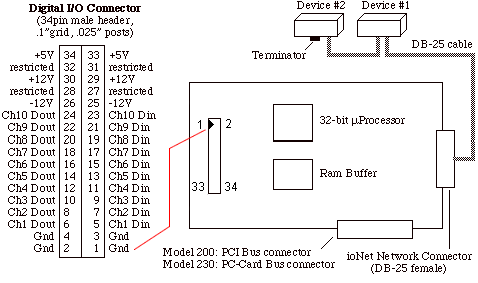

Fig 6.1 Model 200 instruNet Controller Connector Layouts.
