List of Steps To Connect Sensor To Windows Computer

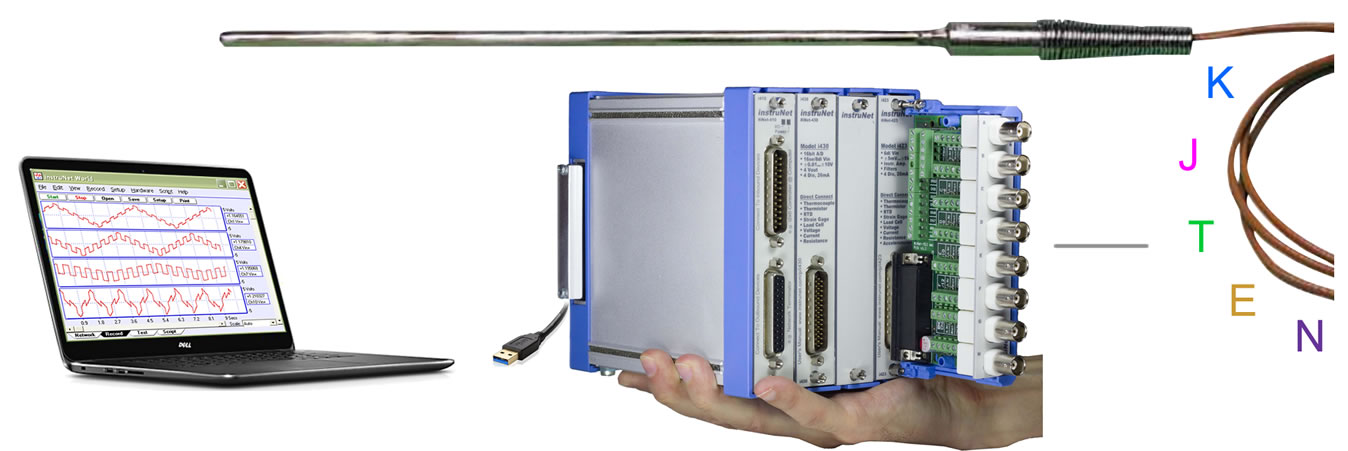

To connect the thermocouple temperature sensor to instruNet, please do the following steps:
Install instruNet hardware and software, as described
here.
Wire your sensor to instruNet:
* instruNet_Vin+ to Sensor+
* instruNet_Vin- to Sensor-
* add jumper wire from instruNet_Vin- to instruNet_GND.
Set up your software:
* run instruNet World software
* click on your channel in the instruNet NETWORK page
* select HARDWARE in the Settings menu
* select your thermocouple type in the SENSOR menu
* run through the interview
View measured value in the lower right corner of setup dialog, or Network page.
Apply stimulous to sensor. Does value look correct?
If not, click
thermocouple troubleshooting.
Save your settings in a .prf file by pressing the SAVE
button in the NETWORK page (not record page).
To get these back, click OPEN in the network page.
To further learn how to use instruNet, click
software tutorial.
